AGP 24″ New UV DTF i3200-U1 Crystal Sticker Printing Machine UV Roll to Roll 60cm UV DTF Printer

UV DTF printer can realize one piece of printing, no need to make a plate, that is, hit that out, that is, paste that tear, greatly eliminating a variety of tedious operating steps and processes, whether it is LOGO trademark or pattern, can be achieved, to meet the needs of many kinds of personalized small batch of custom customers.

Rated 4.7/5 based on 303 customer reviews
Share:
Content

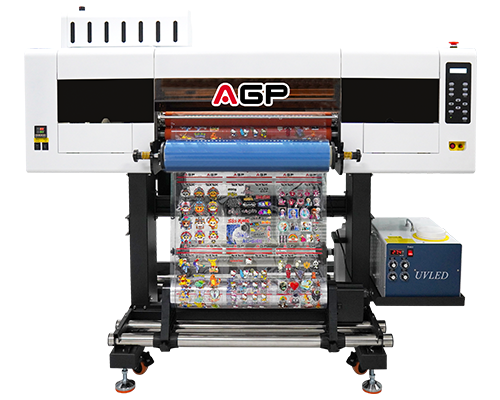

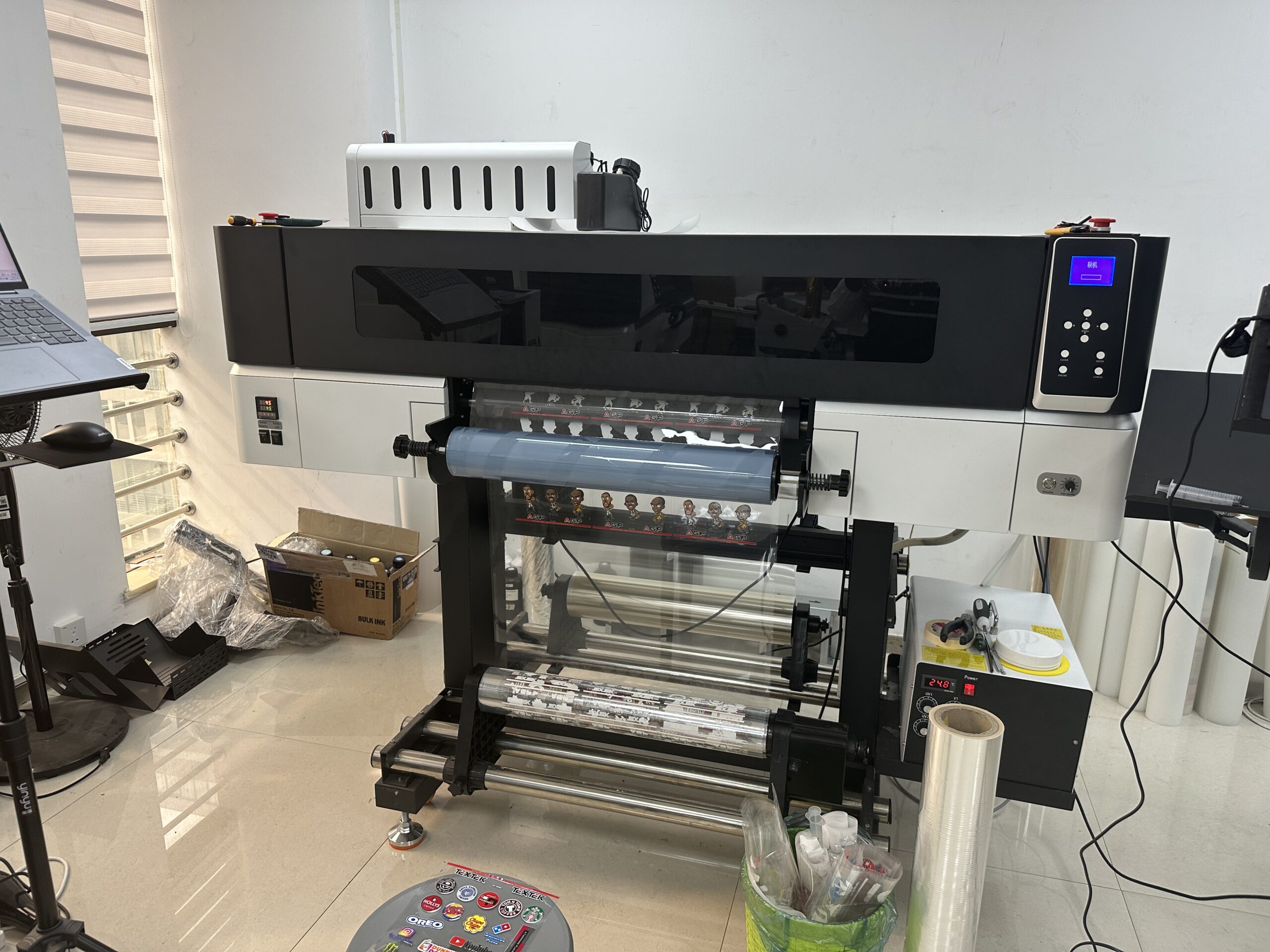

AGP UV-S604 printer is equipped with 3*Epson I3200-U1 printheads (I1600-U1 printheads for option). It supports CMYK+White+Varnish. The speed can reach to 8㎡/h. The integrated feedind and taking-up system can save the space and avoid the film to go obliquely.

As a professional digital printer manufacturer, not only can we provide senior quality printer, but also the latest printing solutions and matching consumables. The following pictures are the gold/silver foil stamping solution.

UV-S604 Printer parameter

Model UV-S604
Printhead Epson I3200-U1/Epson I1600-U1
Quantity 3 4
Printing Color W+CMYK+V G+W+CMYK+V
Printing Speed I3200-U1 6PASS 3-10m²/h 8PASS 2.5-8m²/h 12PASS2-6m²/h
11600-U1 4PASS 4m²/h 6PASS 3m²/h 8PASS 2m²/h
Printing Size 600mm
RIP Software Riin/Flexiprint/Cadlink/Maintop
Print Media UV AB Film
Laminator Integrated automatic laminator
Ink supply system White ink circulation and stirring
Ink curing Water cooler+UVLED lamp (to ensure long-term high-intensity operation)
Power Supply 110V/220V 50-60HZ
Sleeping:45W

Standby:1100W

Working:2000W

Work Environment Temperature:20°C-30°C humidity:35%-65%
Dimension 1800*870*1600mm
