AGP DTF TK1600, advanced DTF printing technology, automatic heat drying system, high-speed printing capability
The DTF-TK1600 is a powerful DTF printer equipped with Epson 13200-A1 printheads for superior printing quality. Capable of printing up to 38 m²/h, it is designed to handle large production volumes without compromising on quality. With its CMYK+White ink system, auto ink supply, and white ink circulation, it ensures vibrant, long-lasting prints with minimal downtime. The printer’s automatic feeding system, combined with its three-zone heating, makes it ideal for mass production in industries such as textiles and advertising. Whether you are printing on apparel, signs, or banners, the DTF-TK1600 provides the perfect solution for high-speed, high-quality printing.
| Feature | Details |
|---|---|
| Model | DTF-TK1600 |
| Printhead | Epson 13200-A1 |
| Printhead Quantity | 5 or 6 (depending on configuration) |
| Printing Color | CMYK + White (W), or CMYK + Fluorescent Red (FR), Fluorescent Green (FG), Fluorescent Magenta (FM), Fluorescent Yellow (FY) + White (W) |
| Printing Speed | – High-speed mode: 720×1800 DPI 6 Pass: 38 m²/h – 720×2400 DPI 8 Pass: 17 m²/h – High-precision mode: 720×1800 DPI 6 Pass: 28 m²/h |
| Printing Size | Maximum printing width: 1600mm |
| RIP Software Compatibility | RllN, Flexiprint, CADlink, Maintop |
| Ink System | – Automatic Ink Supply – White Ink Circulation & Stirring |
| Media Transfer | Auto-Feeding and Take-Up System |

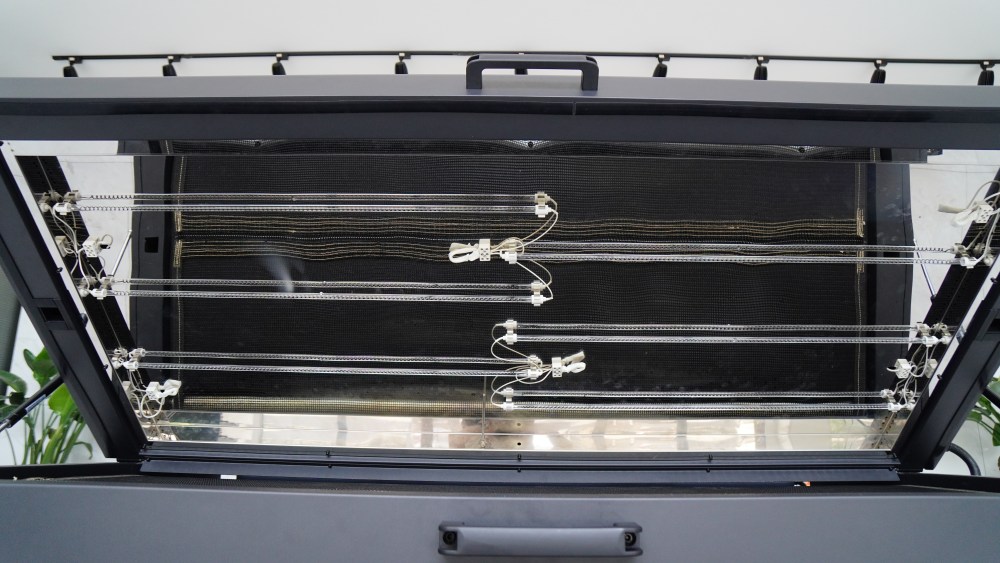

| Heating Method | Front, Middle, and Rear 3-Stage Heating |
| Power Supply | 110V/220V, 50~60HZ, 510W/10KW |
| Work Environment | Temperature: 20°C ~ 30°C Humidity: 35% ~ 65% |
| Machine Size/Weight | – Printer: 2970mm x 850mm ~ 1565mm – Weight: 210kg |
| Powder Shaker Size/Weight | – Powder Shaker: 2160mm x 2090mm x 967mm – Weight: 643kg |
| Applications | Textiles, Apparel, Signs, Promotional Materials, Home Décor, Custom Merchandise |
| Key Features | – Fast printing speeds (up to 38m²/h) – Vibrant, long-lasting prints with CMYK+White ink – Automatic feeding and take-up system for seamless operation – Suitable for mass production and high-volume printing |
| Perfect For | Textiles, Advertising, Apparel, Banners, Custom Designs |
Summary:
The DTF-TK1600 is a powerful DTF printer equipped with Epson 13200-A1 printheads for superior printing quality. Capable of printing up to 38 m²/h, it is designed to handle large production volumes without compromising on quality. With its CMYK+White ink system, auto ink supply, and white ink circulation, it ensures vibrant, long-lasting prints with minimal downtime. The printer’s automatic feeding system, combined with its three-zone heating, makes it ideal for mass production in industries such as textiles and advertising. Whether you are printing on apparel, signs, or banners, the DTF-TK1600 provides the perfect solution for high-speed, high-quality printing.
