AGP Gold UV film A and B printer with 3/4 I3200 printheads crystal sticker printer

AGP UV-S604 printer is equipped with 3 I3200-U1 printheads (4 I3200-U1/I1600-U1 printheads for option). It is printed on special release material required graphics, printed on the A film with glue through the UV printer, after printing and then cover the transfer film B film, and then use the film to bring up the pattern transfer attached to the product surface of a surface graphic production process.

Rated 4.7/5 based on 394 customer reviews
Share:
Content

AGP UV-S604 printer is equipped with 3 I3200-U1 printheads (4 I3200-U1/I1600-U1 printheads for option). It is printed on special release material required graphics, printed on the A film with glue through the UV printer, after printing and then cover the transfer film B film, and then use the film to bring up the pattern transfer attached to the product surface of a surface graphic production process.

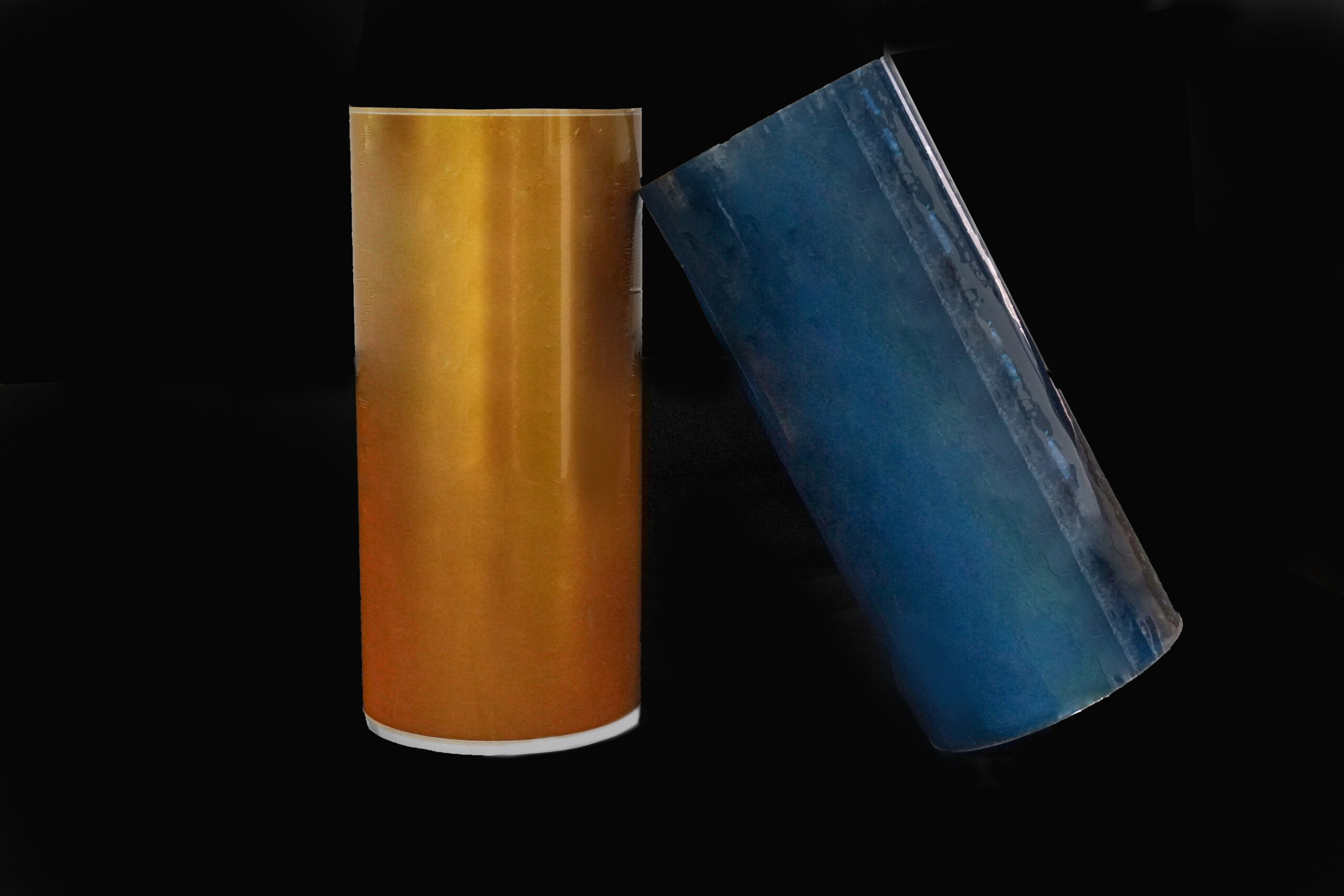

The film A can be transparent, white based paper and golden film. A variety of films give customers more choices and bring more profits to merchants.

UV DTF Printer parameter

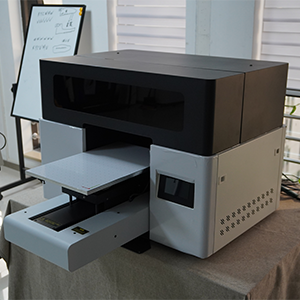

Model UV-S604
Printhead Epson I3200-U1/Epson I1600-U1
Quantity 3 4
Printing Color W+CMYK+V G+W+CMYK+V
Printing Speed I3200-U1 6PASS 3-10m²/h 8PASS 2.5-8m²/h 12PASS2-6m²/h
11600-U1 4PASS 4m²/h 6PASS 3m²/h 8PASS 2m²/h
Printing Size 600mm
RIP Software Riin/Flexiprint/Cadlink/Maintop
Print Media UV AB Film

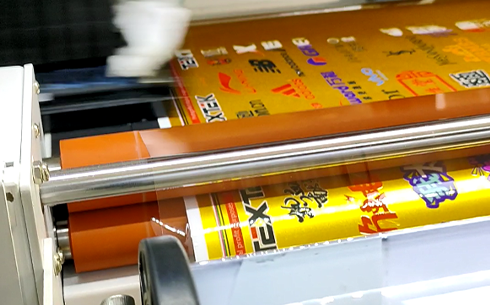

Laminator Integrated automatic laminator
Ink supply system White ink circulation and stirring
Ink curing Water cooler+UVLED lamp (to ensure long-term high-intensity operation)
Power Supply 110V/220V 50-60HZ
Sleeping:45W

Standby:1100W

Working:2000W

Work Environment Temperature:20°C-30°C humidity:35%-65%
Dimension 1800*870*1600mm
