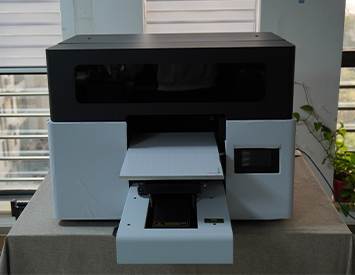

Three-in-one flatbed printer (UV3040) to meet your various needs
The UV3040 is a powerhouse of functionality, designed to revolutionize your printing experience. Its versatile capabilities extend to printing on a diverse array of surfaces, from metal and leather to wood, paper, plastic, ceramic, and glass. Equipped with the advanced Epson L3200-U1 HD Printhead, it ensures precision and clarity in every print.
| Model | UV3040 |
| Printhead | Epson l3200-U1 HD Printhead |
| Printhead Quantity | 1 |
| Print Speed | 0.28m²/h~3m²/h |
| Print Width | Platform:297*420mm Cylinder:230*420mm |
| Print Media Thickness | 1mm~90mm |
| lnk Type | Environmental friendly UV curing ink |
| Color Configuration | Standard: CMYK+W+V Optional: YMCK LC LM+W |
| RIP Software | Maintop, FlexiPRINT,RIIN |
| Print Media | Glass, plates, various signs, crystal, PVC, acrylic, leather plastic, etc. |
| Photo Format | TIFF, JPEG, PDF, EPS, PNG, Al, BMP, etc. |
| Computer Configuration | Win10/64-bit system |
| Transmission Interface | Gigabit network port, hard disk 500G above |
| Rated Voltage/Power | 220V,50HZ/60HZ |
| Sleeping:30W
Working:500W |
|
| Work Environment | T:15°C~28°C, H: 40%~60%RH |
| Machine Size/Weight | 825mm*1019mm*612mm(L*W*H) 80KG |
The UV3040 printing machine is a versatile powerhouse, supporting three distinct printing modes: flatbed, cylinder, and roll printing.

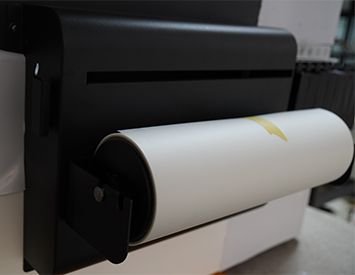

With a adjustable tablet that adjusts up to ten centimeters in height, it accommodates materials of varying thicknesses for flatbed printing. Cylinder printing mode allows for printing on objects with a maximum diameter of ten centimeters, while roll printing supports various roll materials, including self-adhesive. This multi-mode functionality revolutionizes printing processes, enabling seamless customization on rigid, curved, and continuous surfaces with ease and precision.
