DTF-TK1600

PARTNER WITH US FOR YOUR FUTURE

Why did a Startup Choose A-GOOD-PRINTER

DTF printer is the most widely used printing equipment for personalized custom clothing. It can be printed on a single piece or mass-produced. The most important thing is that DTF printer meets the national environmental protection standards, so as to avoid waste discharge characteristics. At present, many countries such as Europe have imported our DTF printer clothing printing equipment.

Introduction

DTF Printer introduction

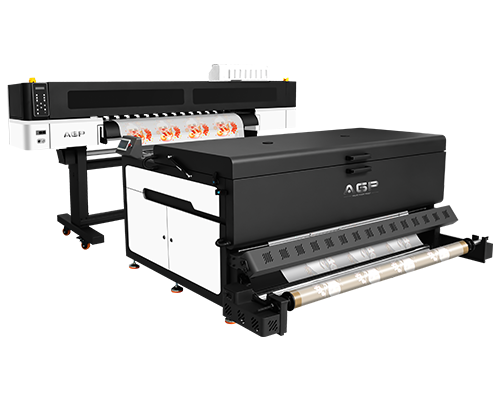

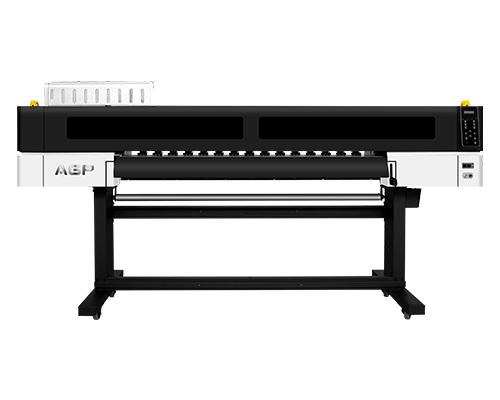

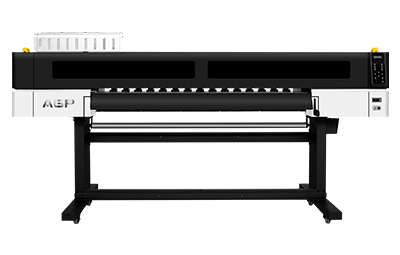

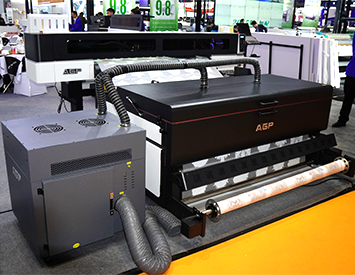

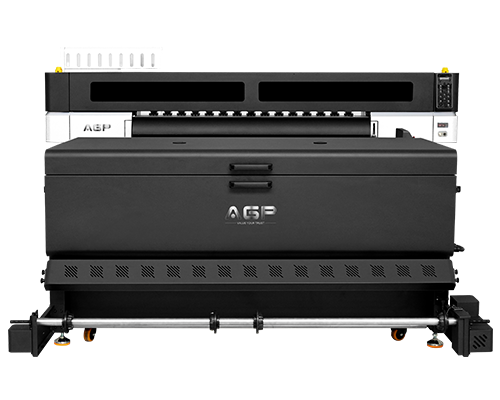

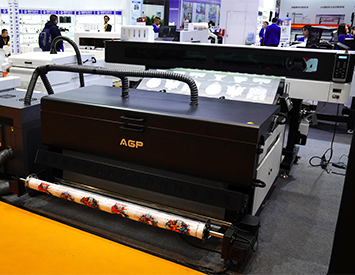

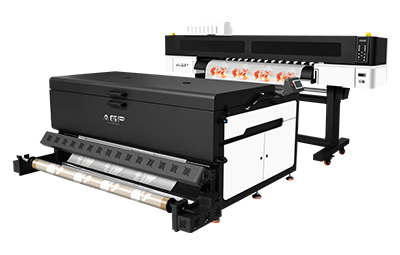

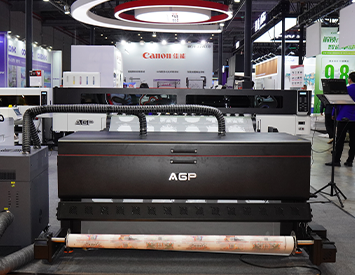

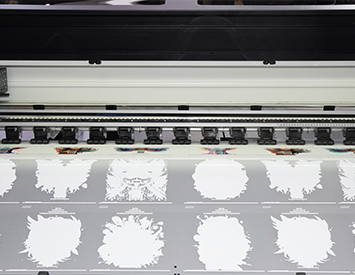

The TK1600 is a high-efficiency DTF printer equipped with 5/6 Epson 13200-A1 print heads, supporting CMYK+White printing with up to 38m²/h speeds. With a maximum print width of 1600mm, it features an automatic feeding and take-up system, 3-stage heating, and advanced ink circulation. Designed to print high-quality patterns on PET film, it allows one person to operate multiple devices and requires no minimum order quantity. Fast and cost-effective, the TK1600 delivers vibrant colors with excellent wash resistance, achieving photo-level effects with clear high-definition image files. Perfect for textiles and signage.

Get Quote Now

Parameter

DTF Printer Parameter

TK1600 is a high-performance DTF printer that uses Epson 13200-A1 print head, supports CMYK+white printing, and has an automatic ink supply and white ink circulation system. It can print 38m²/h in high-speed mode and supports a maximum printing width of 1600mm, which is suitable for mass production. The device has an automatic paper feeding and discharging system and a three-zone heating function to ensure stable printing results. It is compatible with a variety of RIP software and has strong flexibility. It is suitable for use in industries such as textiles and advertising and is an ideal choice for improving production efficiency and printing quality.

Model	DTF-TK1600
Printhead	Epson 13200-A1
Printhead Quantity	5		6
Printing Color	CMYK+W		CMYK+ FR/FG/FM/FY+W
Printing Speed	High-speed mode	720*1800DPI 6PASS 38m²/h	7201800DP 6PASS 21m²/h 7202400DPI8PASS 17m²/h
	High precision mode	720*1800DPI 6PASS 28m²/h	7201800DPI6PASS 14m²/h 7202400DPI8PASS 13m²/h
Printing Size	1600mm
RlP Software	RllN/Flexiprint/CADlink/Maintop
Media Transfer	Auto-feeding and take-up system
Heating Method	Front/middle/rear 3. stage heating
Ink System	Auto ink supply, white ink circulating and stirring
Power Supply	110V/220V 50~60HZ 510W/10KW
Work Environment	Temperature:20-C~30°℃ Humidity:35%~65%
Machine size/weight	Printer:2970850~1565mm Powder Shaker:21602090*967mm
Packaging Size/Weight	Printer:3100760850mm 210kg Powder Shaker: 212016701170mm 643kg

Features

DTF Printer Features

The TK1600 with 5/6 Epson 13200-A1 print heads. It offers speeds up to 38m²/h, automatic feeding, advanced heating, and compatibility with major software, making it ideal for efficient, high-quality textile and signage printing.

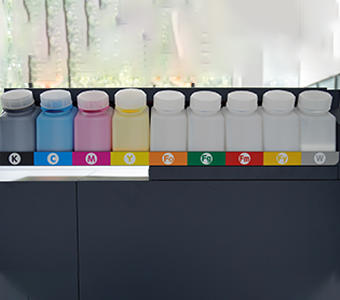

CMYK+W+FO+FG+FM+FY

The TK1600 delivers outstanding color accuracy with a broad spectrum of shades and vibrant fluorescent effects.

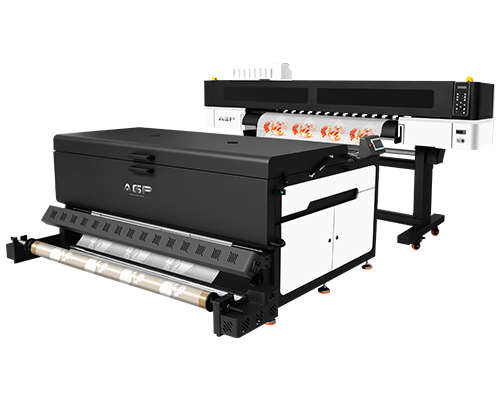

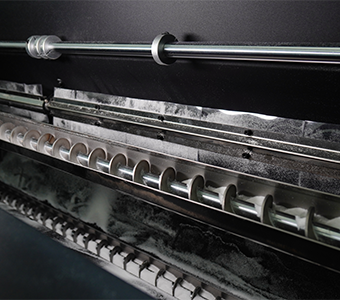

Auto-Returning Powder

Auto-returning powder system enhances efficiency by automatically recycling excess powder for consistent, high-quality prints.

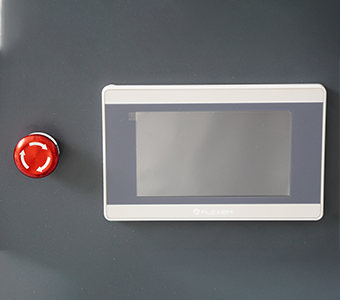

Multi-language touch screen

Multi-language touch screen simplifies operation by offering intuitive controls in various languages for a user-friendly experience.

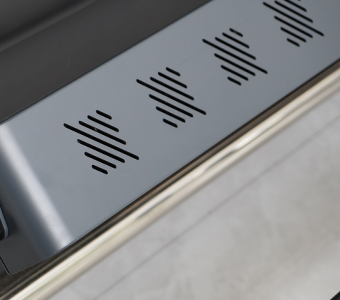

Air Cooling Function

Air cooling function maintains optimal operating temperatures, enhancing reliability and print quality.

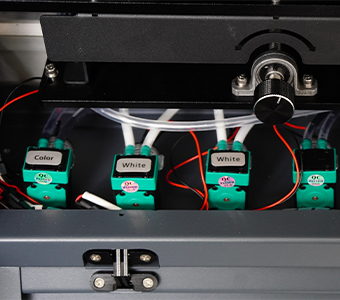

Maintenance System Components

Advanced maintenance system components ensure reliable operation by simplifying upkeep and minimizing downtime.

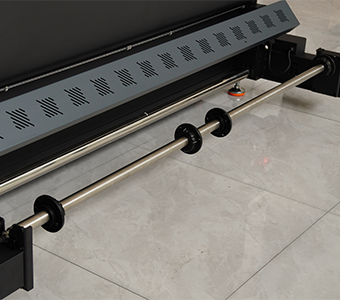

Automatic Feeding System

Automatic feed and take-up systems simplify the printing process, reduce manual operations and increase productivity.

3 Big Steps

Printing Step

The working principle of DTF Printer is to print the pattern on the transfer film, shake the powder and dry it with a powder shaking machine, and then press it with a hot press to transfer the pattern on the film to various fabrics. A DTF Printer all-in-one machine plus hot stamping printing film, printing ink, hot melt adhesive powder, it only takes 5 minutes to hot stamp a piece of clothing!

1

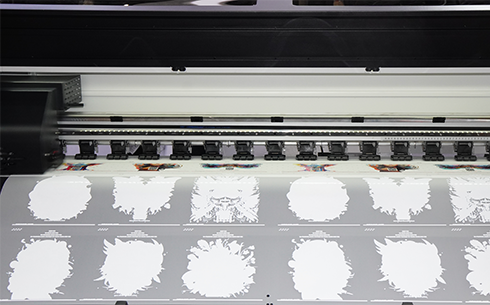

Printing, dusting, shaking and drying powder

2

Heat transfer

3

Finished product

What Can We Do with DTF Printers

Creativity At Your Fingertips

DTF printers can print on light and black fabrics, are not limited by fabrics and colors, especially suitable for DIY printing. Suitable for leather, bags, shoes, hats, garments, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear and other textile and textile crafts.

Technical Support

Through cooperation with world famous print head manufacturers and software suppliers, we integrate sophisticated and practical technology into our fabric printers.

Provide one-year warranty for the machine

Provide a detailed installation tutorial for the machine

Provide guidance documents for solving common problems of DTF printers

Provide online remote guidance

People's View Of The Product

What Are People Saying About The DTF PRINTER?

We love hearing what our customers say about our products

Get Quote Now

PARTNER WITH US FOR YOUR FUTURE

Relevant Products

We provide one-stop service, including DTF printer, shaker machine, UV DTF printer, DTF ink, PET film, powder, etc.

DTF-C30 DTF Printer

Printhead:3*Epson I1600

Printing Color:CMYK+CMYK+W

Printing Speed:6PASS 12m²/h 8PASS 8m²/h

Printing Size:300mm

RIP Software:Riin/Flexiprint/Cadlink/Maintop

Ink supply:Auto ink supply, white ink circulating and stirring

More+

DTF-T652/653/654 DTF Printer

Printhead:Epson I3200-A1/Epson I1600-A1

Quantity:2/3/4

Printing Size:600mm

RIP Software:Riin/Flexiprint/Maintop,etc

Media Transfer:Auto-feeding and take-up system

Printer Dimension:1795*726*1380mm 213kg

More+

DTF-T30 DTF Printer

Printhead:2/3 Epson I1600-A1

Print Width:300mm

Print Colors:CMYK+CMYK+W

Printhead Quantity:2/3

Computer System:Windows

Max Printing Speed:6PASS 12m²/h 8PASS 8m²/h

More+

DTF-E30 DTF Printer

Printhead:Epson F1080-A1 printhead

Print Width:300mm

Print Colors:CMYK+W

Printhead Quantity:1

Computer System:WIN10/WIN11

Max Printing Speed:8PASS 4m/h

More+

Submit a Quick Quote

PARTNER WITH US FOR YOUR FUTURE

Question Answers

If I have some technical problem, how can you help us to solve it?

We will be responsible for after-sales service. You can send us detailed descriptions, photos, or videos, then our technician will give a professional solution accordingly.

Is there any warranty for this printer?

Yes, we provide 1 year warranty for the printers and with perfect after-sales service.

How do you deliver the printer to me?

1. If you have a freight forwarder in China, we can arrange to deliver the goods to your freight forwarder’s warehouse. 2. If you do not have a freight forwarder in China, we can find cost-effective freight forwarders and transportation methods for you to deliver the goods to your country.

What's your delivery time?

Usually 7-15 working days after receiving the payment based on the order volume.

Are you a manufacturer or trade agent?

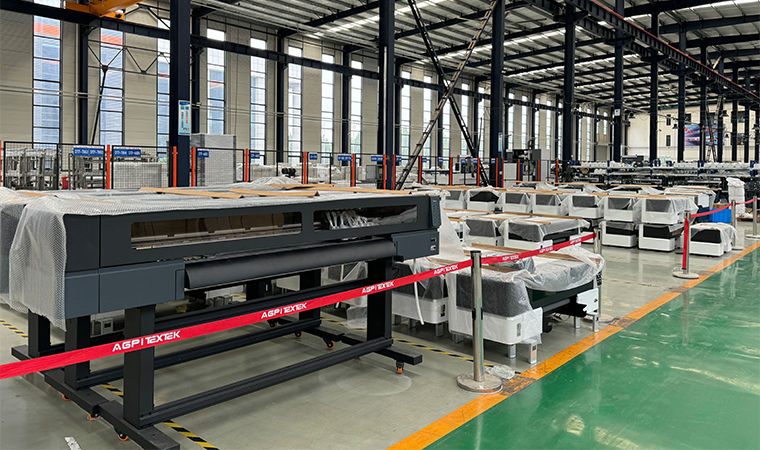

We are the top manufacturer of digital printers in China with more than 20 years experience. We can provide digital printers and accessories.

What certificates do your printers have?

CE certificate for DTF printer, MSDS certificate for the ink, PET film, and powder.

How can I install and start to use the printer?

Normally we provide detailed installation tutorial videos and user manuals. And we also have professional technicians to support you when you have any questions.
