UV-S1600

UV-S1600 Printer

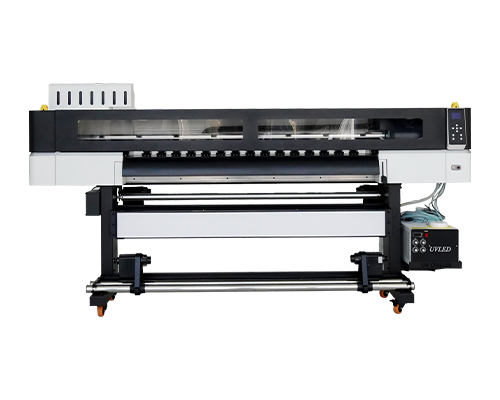

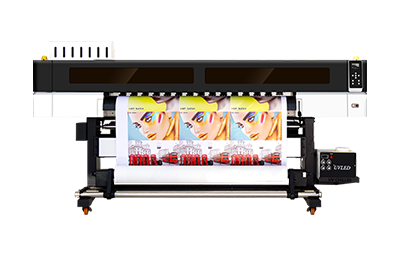

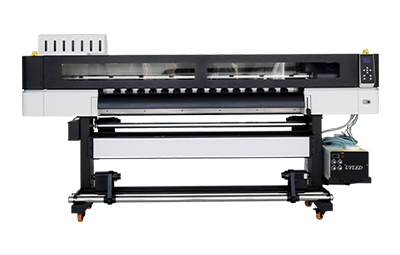

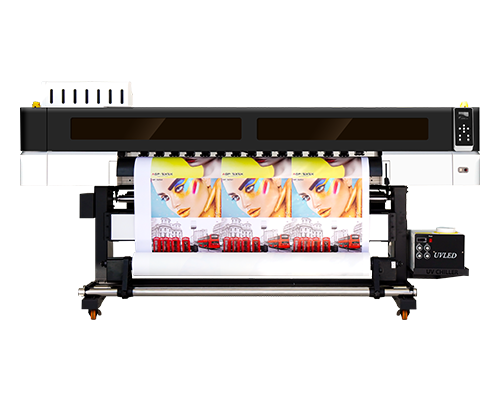

The UV-S1600 is a high-performance large-format UV printer with Epson 13200-U1 printheads and Flexiprint technology. It’s perfect for printing on materials like PVC banners, vehicle wraps, canvas, and lightbox fabric. With a 1600mm printing width and multiple color configurations (CMYK+W+CMYKW+CMYK), it delivers high-speed and high-precision printing for various applications. Equipped with a UV LED curing system and water cooling, the UV-S1600 ensures consistent, high-quality results even during long, high-intensity operations.

Click here to learn more

REQUEST A QUOTE

COMPARE MODELS

SHARE PRODUCT

PARTNER WITH US FOR YOUR FUTURE

Why did a Startup Choose A-GOOD-PRINTER

We treat every printer in a serious and pragmatic attitude: strictly control the purchase of parts, and owns rigor quality detection system of production links.Letting every consumer trustworthy in buying and using is the responsibility and the duty of our products; to solve every customer's problem is the only objective of our after-sales service.

Introduction

UV-S1600 Printer introduction

The UV-S1600 is a high-performance large-format UV printer, featuring Epson 13200-U1 printheads and Flexiprint technology. With a 1600mm printing width and versatile ink options (CMYK+W+CMYKW+CMYK), it delivers high-speed, high-precision printing on materials like PVC banners, vehicle wraps, and canvas. The UV LED curing system ensures quick ink drying, while the water-cooling system guarantees stable, long-term performance. Ideal for high-volume commercial and custom print applications, the UV-S1600 offers reliable, top-quality results.

Get Quote Now

Parameter

UV-S1600 Printer Parameter

This table overviews the UV-S1600 large-format UV printer's key specifications, including its Epson 13200-U1 printhead, printing speed, color options, supported media applications, ink curing system, and power requirements. It also outlines the machine's dimensions, weight, and optimal work environment, giving a comprehensive look at the printer's capabilities for high-performance, large-scale printing applications.

Model	UV-S1600
Printhead	Epson 13200-U1
Printhead Quantity	3	4
Printing Colors	CMYK+W+CMYK W+CMYK+FMFY+V (Optional)	W+W+CMYK+CMYK CMYK+CMYK+CMYK+CMYK
Printing Speed	High Speed Mode	7201200DPI 4PASS 17m²/h 7201800DPI 6PASS 11m²/h 7202400DP 8PASS 8m²/h 7203600DPI 12PASS 6m²/h
	High Precision Mode	7201200DPI 4PASS 13m²/h 7201800DPI 6PASS 9m²/h 7202400DPI 8PASS 7m²/h 7203600DPI 12PASS 4m²/h
Printing Size	1600mm
RIP Software	Flexiprint
Media Applications	PVC Banner, Vehicle Wrap, Lightbox Fabric, Canvas, etc.
Ink Curing	Water cooler + UV LED lamp (to ensure long-term high-intensity operation)
Power Supply	220V 50~60HZ 135W
Work Environment	Temperature: 20°C-30°C, Humidity: 35%-65%
Machine Size/Weight	29708501563mm 259kg
Packaging Size/Weight	3130760870mm 332kg

Features

UV-S1600 Printer Features

The UV-S1600 offers exceptional printing speed, high precision, and versatile media compatibility, along with advanced features like UV LED curing and water cooling, making it ideal for large-scale, high-quality commercial printing applications.

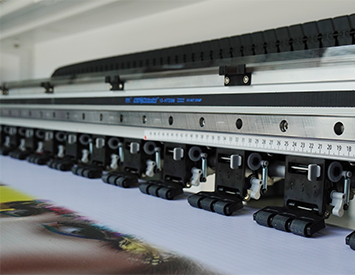

Dual Servo Motors

The dual servo motors ensure smooth, precise movements, enhancing printing accuracy and speed.

Static Elimination Device

The built-in static elimination device prevents static buildup, ensuring consistent print quality and reducing material issues.

Auto Tension Adjustment

The auto tension adjustment feature automatically adjusts the media tension, maintaining optimal print quality and preventing print misalignment.

One-Button Moisturizing

The one-button moisturizing system ensures consistent ink flow by keeping the printhead moist, improving overall performance.

Enhanced Durability

The robust construction of the UV-S1600 ensures long-term reliability and high productivity in demanding environments.

Advanced RIP Software

Equipped with powerful Flexiprint RIP software, the UV-S1600 optimizes color management and printing efficiency for professional-grade results.

3 Big Steps

Printing Step

The UV-S1600 printing process involves loading media, preparing the design with Flexiprint software, calibrating the printhead for precision, and using the UV LED curing system to quickly dry ink. Final post-processing steps ensure high-quality, durable prints for various applications.

Print pattern

Stick to the right place

After pressing the patternremove the crystal sticker

What Can We Do with UV Printers

Creativity At Your Fingertips

Technical Support

Through cooperation with world famous print head manufacturers and software suppliers, we integrate sophisticated and practical technology into our fabric printers.

Provide one-year warranty for the machine

Provide a detailed installation tutorial for the machine

Provide guidance documents for solving common problems of DTF printers

Provide online remote guidance

People's View Of The Product

What Are People Saying About The UV-S1600?

We love hearing what our customers say about our products

Get Quote Now

PARTNER WITH US FOR YOUR FUTURE

Relevant Products

We provide one-stop service, including DTF printer, shaker machine, UV DTF printer, DTF ink, PET film, powder, etc.

UV3040 UV3040 Printer

Epson l3200-U1 HD Printhead

Standard: CMYK+W+V Optional: YMCK LC LM+W

Print Media:Glass,plates, various signs, crystal, PVC, acrylic, leather plastic, etc.

Software:Maintop,FlexiPRINT,RIIN

More+

UV-S30 UV DTF Printer

Printhead:3*Epson I1600

Print Width:300mm

Print Colors:CMYK+W+V

RIP Software:Riin/Flexiprint/Maintop,etc

More+

UV-S604 UV DTF Printer

Printhead:Epson I3200-U1/Epson I1600-U1

Print Width:600mm

Print Colors:W+CMYK+V G+W+CMYK+V

Printhead Quantity:3or4

More+

Submit a Quick Quote

PARTNER WITH US FOR YOUR FUTURE

Question Answers

If I have some technical problem, how can you help us to solve it?

We will be responsible for after-sales service. You can send us detailed descriptions, photos, or videos, then our technician will give a professional solution accordingly.

Is there any warranty for this printer?

Yes, we provide 1 year warranty for the printers and with perfect after-sales service.

How do you deliver the printer to me?

1. If you have a freight forwarder in China, we can arrange to deliver the goods to your freight forwarder’s warehouse. 2. If you do not have a freight forwarder in China, we can find cost-effective freight forwarders and transportation methods for you to deliver the goods to your country.

What's your delivery time?

Usually 7-15 working days after receiving the payment based on the order volume.

Are you a manufacturer or trade agent?

We are the top manufacturer of digital printers in China with more than 20 years experience. We can provide digital printers and accessories.

What certificates do your printers have?

CE certificate for DTF printer, MSDS certificate for the ink, PET film, and powder.

How can I install and start to use the printer?

Normally we provide detailed installation tutorial videos and user manuals. And we also have professional technicians to support you when you have any questions.
