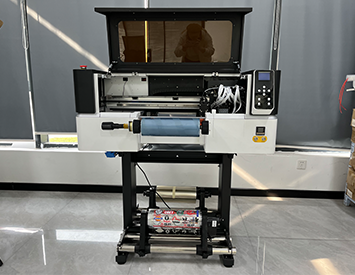

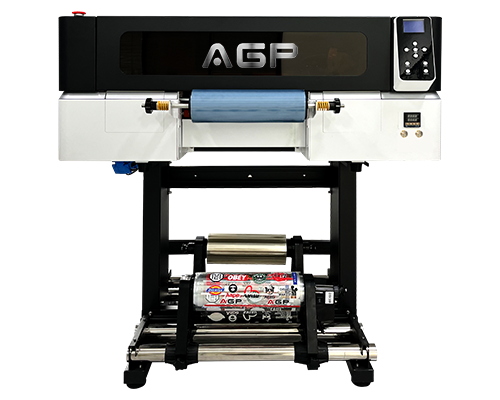

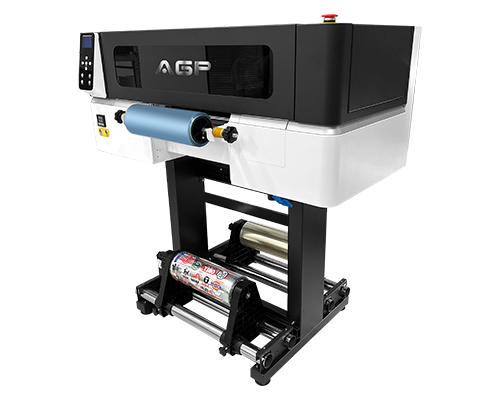

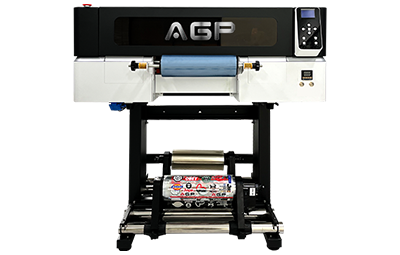

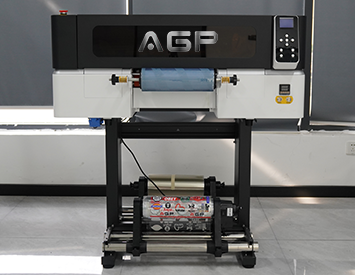

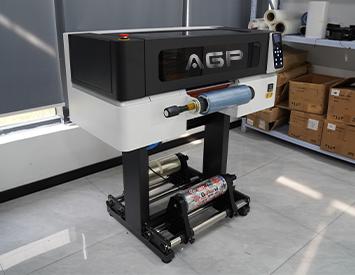

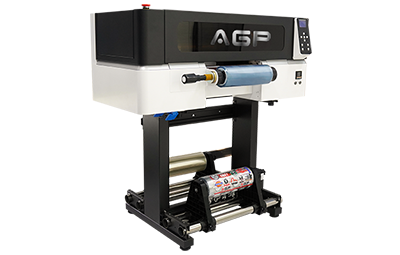

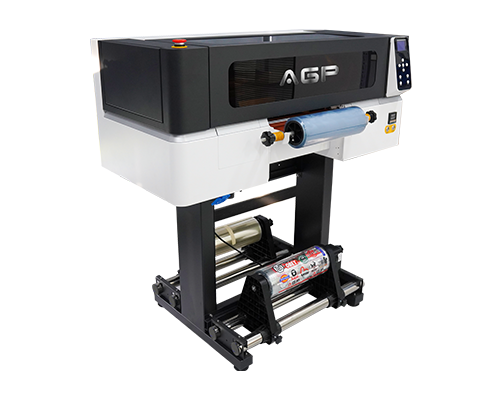

UV-S30

UV DTF Printer

AGP self-developed uv dtf printer(crystal label printer), small footprint, easy to use and easy to operate, it is one of the first choice for DIY small shop business.
Printhead: 3*Epson I1600; Printing Speed: 6PASS 7m²/h, 8PASS 5m²/h; Print Width: 300mm(12 inch); Printing Color: CMYK+W+V; RIP Software: RIIN/Flexiprint/CADlink/Maintop

Click here to learn more

REQUEST A QUOTE

COMPARE MODELS

SHARE PRODUCT

PARTNER WITH US FOR YOUR FUTURE

Why Did A Startup Choose A-GOOD-PRINTER

We treat every printer in serious and pragmatic attitude: strictly control the purchase of parts, owns rigor quality detection system of production links.Letting every consumer trustworthy in buying and using is the responsibility and the duty of our products; to solve every customer's problem is the only objective of our after-sales service.

Introduction

UV DTF Printer introduction

Crystal label is also called UV transfer sticker, cultural sticker, UV cold transfer sticker, its predecessor is called sense pressure sticker, it is printed on special release material required graphics, printed on the A film with glue through the UV printer, after printing and then cover the transfer film B film, and then use the film to bring up the pattern transfer attached to the product surface of a surface graphic production process.

Get Quote Now

Parameter

UV DTF Printer parameter

UV DTF printer can realize one piece of printing, no need to make a plate, that is, hit that out, that is, paste that tear, greatly eliminating a variety of tedious operating steps and processes, whether it is LOGO trademark or pattern, can be achieved, to meet the needs of many kinds of personalized small batch of custom customers.

Model	UV-S30
Printhead	3*Epson l1600
Printing Color	CMYK+W+V
Printing Speed	6PASS 7m²/h 8PASS 5m²/h
Printing Size	300mm
RIP Software	Riin/Flexiprint/Cadlink/Maintop
Printing Media	UV AB film
Lamination	Integrated automatic laminator
Ink curing	LED curing
Power Supply	110V/220V 50-60HZ
Power Supply	Sleeping:40W Standby:140W Working:400W
Work Environment	Temperature:18°C-26°C humidity:35%-70%
Dimension	11709621218mm

Features

UV DTF Printer Features

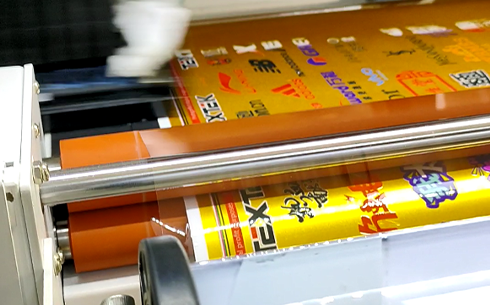

White color varnish synchronous printing,Printing and laminating at same time,Can be transferred on any kind of materials,Efficient and stable, suitable for industrial batch printing

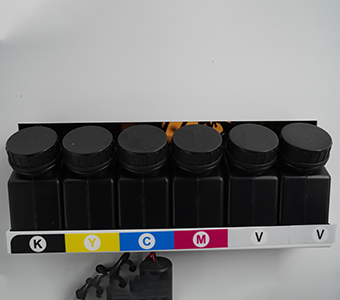

CMYK+W+V

Providing a wide range of color options and the ability to create vibrant and detailed prints with added effects.

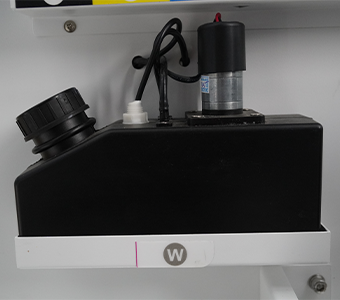

Varnish Stirring

Ensures smooth application, enhances print quality and improves visual effects on various materials.

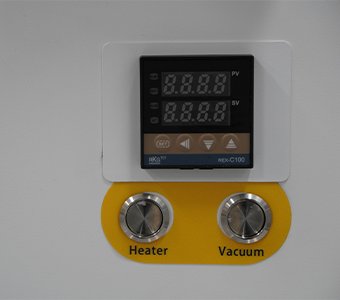

Heater, Vacuum Switch Button

Enable optimal printing conditions, ensuring secure material adhesion through temperature control and a vacuum seal.

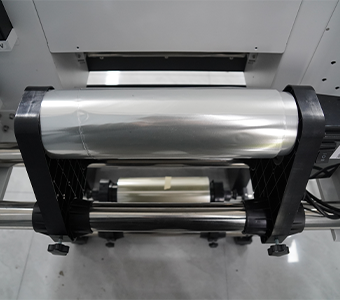

Back feed-in svstem

Achieve smooth, accurate film feed by pulling the film from the back, reducing the risk of film jams and ensuring precise alignment.

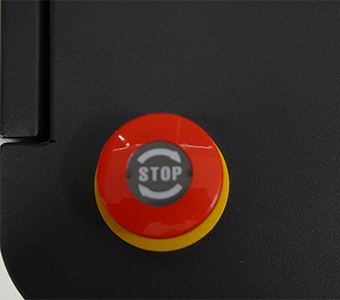

Emergency button

The printing process can be stopped immediately if any problem occurs, ensuring operator safety and preventing potential equipment damage.

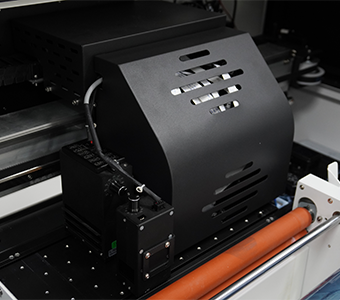

Curing System

LED-UV environment-friendly cold light source curing system, energy-saving, power-saving, and best curing effect.

3 Big Steps

Printing Step

UV DTF is a decorative process of printing patterns and trademarks on special PP release paper in layers of glue, white ink and varnish, then covering the transfer film, and then using the transfer film to bring up the pattern and attach it to the surface of the object. UV DTF is very simple to use, no need to use any equipment, that is, to use, to separate the pattern from the bottom film, and then transfer the film to the surface of the object, press hard once, tear off the surface film can be, tear the film to leave the word, simple and beautiful.

Print pattern

Stick to the right place

After pressing the patternremove the crystal sticker

What Can We Do with UV DTF Printers

Creativity At Your Fingertips

UV DTF Printer can be applied to a wide range of industries, basically processing industries can be used, advertising industry; luggage industry; handicraft industry; toy industry; decorative painting industry; packaging box industry; tile mural; signage industry; DIY makeup packaging materials.

Technical Support

Through cooperation with world famous print head manufacturers and software suppliers, we integrate sophisticated and practical technology into our fabric printers.

Provide one-year warranty for the machine

Provide a detailed installation tutorial for the machine

Provide guidance documents for solving common problems of DTF printers

Provide online remote guidance

People's View Of The Product

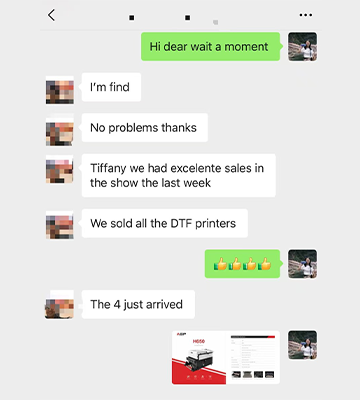

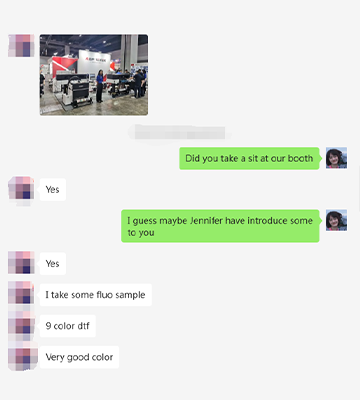

What Are People Saying About The UV-S30?

We love hearing what our customers say about our products

Get Quote Now

PARTNER WITH US FOR YOUR FUTURE

Relevant Products

We provide one-stop service, including DTF printer, shaker machine, UV DTF printer, DTF ink, PET film, powder, etc.

UV3040 UV3040 Printer

Epson l3200-U1 HD Printhead

Standard: CMYK+W+V Optional: YMCK LC LM+W

Print Media:Glass,plates, various signs, crystal, PVC, acrylic, leather plastic, etc.

Software:Maintop,FlexiPRINT,RIIN

More+

UV6090 UV6090 Printer

3*Epson I3200-U1

Standard: CMYK+W+V

UV6090 printer works with regular or irregular surfaces, suitable for metal, leather, wood, paper, plastic, ceramic, and glass customization.

Maintop/Flexiprint/RllN, etc

More+

UV-S604 UV DTF Printer

Printhead:Epson I3200-U1/Epson I1600-U1

Print Width:600mm

Print Colors:W+CMYK+V G+W+CMYK+V

Printhead Quantity:3or4

More+

Submit a Quick Quote

PARTNER WITH US FOR YOUR FUTURE

Question Answers

If I have some technical problem, how can you help us to solve it?

We will be responsible for after-sales service. You can send us detailed descriptions, photos, or videos, then our technician will give a professional solution accordingly.

Is there any warranty for this printer?

Yes, we provide 1 year warranty for the printers and with perfect after-sales service.

How do you deliver the printer to me?

1. If you have a freight forwarder in China, we can arrange to deliver the goods to your freight forwarder’s warehouse. 2. If you do not have a freight forwarder in China, we can find cost-effective freight forwarders and transportation methods for you to deliver the goods to your country.

What's your delivery time?

Usually 7-15 working days after receiving the payment based on the order volume.

Are you a manufacturer or trade agent?

We are the top manufacturer of digital printers in China with more than 20 years experience. We can provide digital printers and accessories.

What certificates do your printers have?

CE certificate for DTF printer, MSDS certificate for the ink, PET film, and powder.

How can I install and start to use the printer?

Normally we provide detailed installation tutorial videos and user manuals. And we also have professional technicians to support you when you have any questions.
